Torque Sensors

T40B Torque Transducer, High‑accuracy Dynamic Torque Measurements

T40B delivers accuracy, stability, and robustness making it the ideal torque transducer for both R&D test benches and end‑of‑line production testing. Its low‑inertia design, advanced digital transmission, and high rotational speed capability support today’s most demanding electric drive and drivetrain applications.

T40B

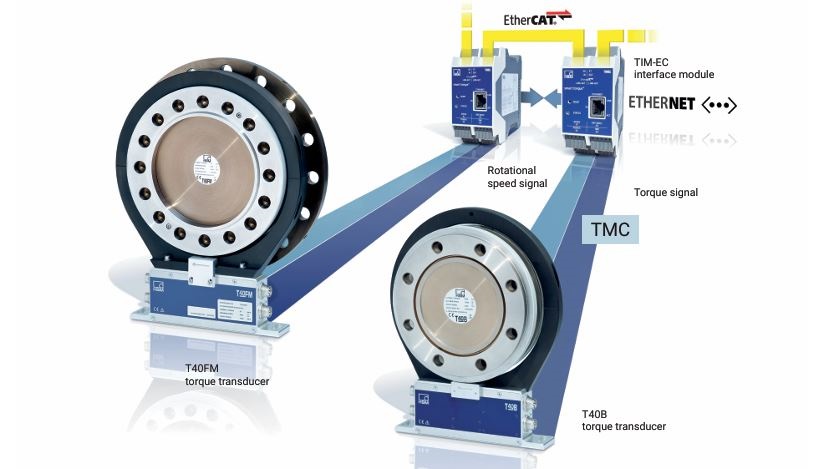

T40B torque flange, with its low-inertia design, delivers stable, repeatable results and is ideal for R&D test benches and end-of-line (EoL) production testing.

Highlights

HBK accuracy class: 0.05
Low‑inertia torque flange design
Digital, error‑detected data transmission
Ideal for static and dynamic torque measurement
Maintenance‑free operation thanks to non‑contact power supply
Compatible with TIM‑EC (EtherCAT) and TIM‑PN (PROFINET)

Tech Specs

Type (rotating/non-rotating): Rotating

Measurement range: 50 Nm, 100 Nm, 200 Nm, 500 Nm, 1 kNm, 2 kNm, 3 kNm, 5 kNm, 10 kNm

Geometry (flange/shaft): Flange

Nominal rotational speed: 10000 rpm, 12000 rpm, 14000 rpm, 15000 rpm, 18000 rpm, 20000 rpm, 22000 rpm, 23000 rpm

Accuracy class: 0.05

Size (length): 190 mm

Weight (material): Steel

Integrated speed measurement: true
