Three Axis Force Dynamometer

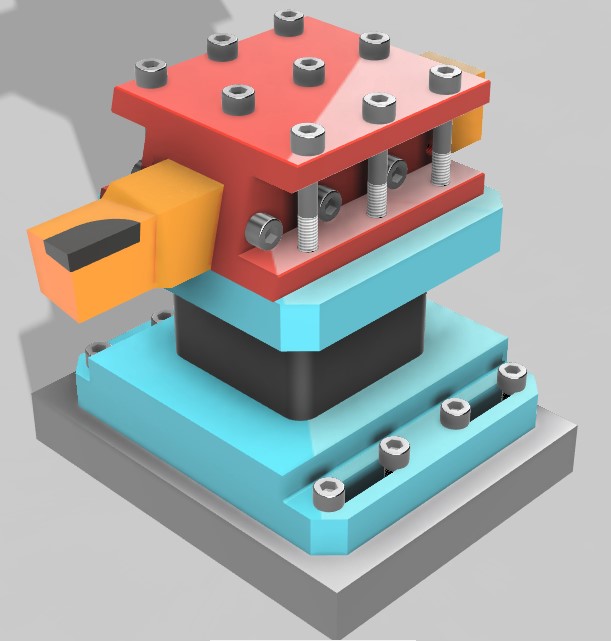

3 Axis Force Dynamometer NK TFS10K
Three-Axis Force Sensor measures forces Fx, Fy, Fz in all three independent loading directions. It is able to measure force in both tension and compression directionStrain gauge-based force sensors are accurate and reliable devices for measuring orthogonal cutting forces and moments. They are also inexpensive and easy to use.The force sensors designed with a monolithic measuring body on which three independent strain gauge bridges are attached. They have good rigidity and high natural frequency, making them inherently suitable for universal application in cutting force measurement and also withstand high bending moments for eccentric force applications. Low profile design makes it suitable for 3-axis force measurement where mounting space is limited.
Machine tool design: The sensor measures the cutting forces in machining operations. This information can be utilized to design machine tools that are better able to withstand the stresses and strains imposed by these forces.
Tool geometry optimization: The dynamometers can be used to optimize the geometry of cutting tools. By measuring the cutting forces under different conditions, it is possible to identify the optimal tool geometry for a given material and cutting condition.
Machinability testing: The force sensor can be used to test the machinability of new materials. By measuring the cutting forces, it is possible to assess the difficulty of machining a particular material and to identify the optimal cutting conditions.
Tool condition monitoring: Our force sensor can be used to monitor the condition of cutting tools. Measuring the cutting forces and moments makes it possible to detect tool wear and breakage before they cause problems.
<p><strong>Machine tool design:</strong> The sensor measures the cutting forces in machining operations. This information can be utilized to design machine tools that are better able to withstand the stresses and strains imposed by these forces.</p> <p><strong>Tool geometry optimization:</strong> The dynamometers can be used to optimize the geometry of cutting tools. By measuring the cutting forces under different conditions, it is possible to identify the optimal tool geometry for a given material and cutting condition.</p> <p><strong>Machinability testing</strong>: The force sensor can be used to test the machinability of new materials. By measuring the cutting forces, it is possible to assess the difficulty of machining a particular material and to identify the optimal cutting conditions.</p> <p><strong>Tool condition monitoring</strong>: Our force sensor can be used to monitor the condition of cutting tools. Measuring the cutting forces and moments makes it possible to detect tool wear and breakage before they cause problems.</p>
