Strain Gauges

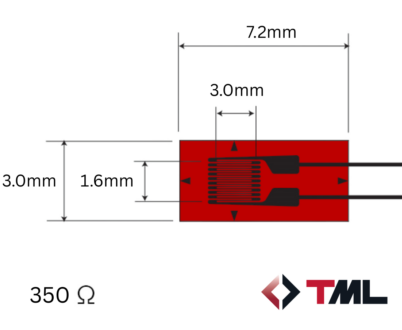

Strain Gauge, Type: FLAB 3 350 11

These strain gauges employ Cu-Ni alloy foils for the grid and epoxy resin for the backing. The epoxy resin backing exhibits excellent electrical insulation performance, and is color-coded to identify the objective material for self-temperature-compensation. All standard strain gauges come with 2cm lead wires pre-attached.

Resistance	350Ω
Applicable specimen	Metal, Glass, Ceramics
Backing	Epoxy
Operational temp. (°C)	-20~+150°C
Element	Cu-Ni
Strain Limit	5% (50000×10-6 strain)
Bonding adhesive	CN, P-2, EB-2

<table>
<tbody>
<tr>
<td>Resistance</td>
<td>350Ω</td>
</tr>
<tr>
<td>Applicable specimen</td>
<td>Metal, Glass, Ceramics</td>
</tr>
<tr>
<td>Backing</td>
<td>Epoxy</td>
</tr>
<tr>
<td>Operational temp. (°C)</td>
<td>-20~+150°C</td>
</tr>
<tr>
<td>Element</td>
<td>Cu-Ni</td>
</tr>
<tr>
<td>Strain Limit</td>
<td>5% (50000×10-6 strain)</td>
</tr>
<tr>
<td>Bonding adhesive</td>
<td>CN, P-2, EB-2<br /><br /></td>
</tr>
</tbody>
</table>
