Strain Gauges
2 Axis Foil Strain Gauges

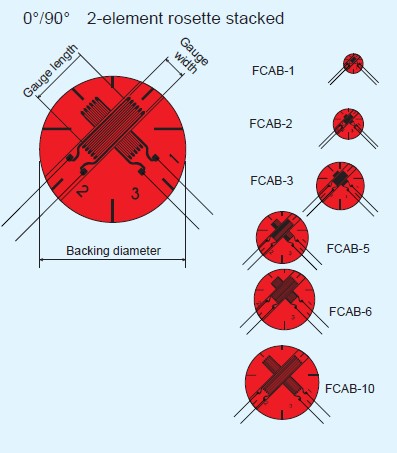

The orthogonal type strain gage is used in the transducer forthe biaxial strain measurement or the simple tension,or for the shearing stress measurement and in the torque converter.
These strain gauges employ Cu-Ni alloy foils for the grid and epoxy resin for the backing.
The epoxy resin backing exhibits excellent electrical insulation performance, and is color-coded to identify the objective material for self-temperature-compensation.
All standard strain gauges come with 2cm lead wires pre-attached.
The orthogonal type strain gage is used in the transducer forthe biaxial strain measurement or the simple tension,or for the shearing stress measurement and in the torque converter.
These strain gauges employ Cu-Ni alloy foils for the grid and epoxy resin for the backing.
The epoxy resin backing exhibits excellent electrical insulation performance, and is color-coded to identify the objective material for self-temperature-compensation.
All standard strain gauges come with 2cm lead wires pre-attached.
|

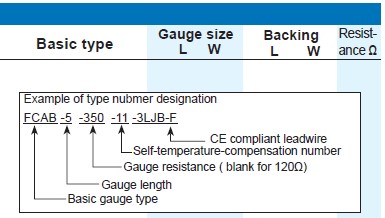

Model |
Gauge Length (mm) |
Gauge Width (mm) |
Backing Diameter (mm) |
Resistance (ohms) |
|
FCAB -1 |
1 |
0.7 |
4.5 |
120 , 350 |
|
FCAB -3 |
3 |
1.7 |
11 |
120 , 350 |
|
FCAB -5 |
5 |
1.9 |
12 |
120 , 350 |
|
FCAB -6 |
6 |
2.4 |
14 |
120 |
|
FCAB -10 |
10 |
2.5 |
17 |
120 |
