Signal Conditioners
ClipX庐 BM40, Industrial Amplifier
ClipX – The Precise and Easy-to-Integrate Industrial Signal Conditioner
With an accuracy class of 0.01 and an integrated calibration certificate, the interference-proof signal conditioner ClipX is setting new standards in industrial process control. ClipX adapts to your measurement task, regardless of whether it is used with single- or multiple-channel applications, in manufacturing machines, in test benches or for production monitoring. Owing to the Plug and Play principle, up to six devices can be plugged simultaneously in a modular setup and the measured data can be pre-calculated. Unlike conventional measuring signal conditioners, ClipX does not require a separate head module for direct data processing.

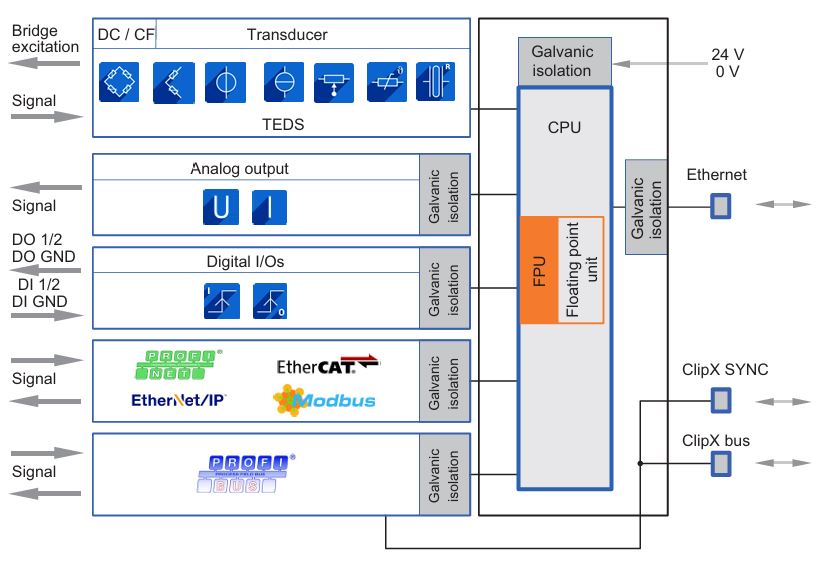

- Freely configurable measurement channel with TEDS channel parameterization
- Connection of 7 transducer technologies with 19.2kHz sample rate
- Accuracy class up to 0.01 with 32-bit A/D conversion 4 digital I/Os and 1 analog output (voltage/current re versible)
- Modular connectivity for up to 6 modules by ClipX bus with transfer of measured values
- Internal calculation channels (Smart functions)
- OPC UA, PPMP protocol, PROFINET® (IRT/RT), Ether CAT®, EtherNet/IP™, PROFIBUS® (DPV1), Modbus TCP
- Simple operation via integrated web server with 3 lev els of user guidance Rugged and compact metal housing for attachment to DIN rail
