C9C Miniature Force Transducer: For Measurement of Compressive Forces

The compact and cost-effective C9C type series force sensors reliably measure compressive force where space is limited. Due to their high fundamental frequency, they are suitable for very fast measurements. Like all strain gauge-based transducers, the C9C sensors also allow for static forces to be measured with long-term stability. They ensure both robustness and plug and measure solution due to their welded design from stainless steel and flexible to order concept. Available as passive load cell or with hard-wired inline amplifier with analogue or digital output signals.

C9C

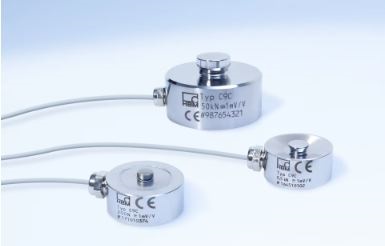

Compact miniature compressive force transducer for space-restricted static and high-rigidity dynamic load measurement applications.

Highlights

Compact design compressive force transducer engineered for tight mechanical spaces
Broad nominal force spectrum from 50 N up to 50 kN with HBK accuracy class 0.2
High rigidity construction, making it ideally suited for fast dynamic measurement tasks
Stainless steel body with IP67 protection class for robust environmental sealing
Flexible deployment configurations including drag-chain suitable cables resistant to oils, customizable plug assemblies, TEDS support, or permanently connected inline amplifiers (mA, V, or IO-Link) on request

Tech Specs

Maximum Capacity (Nominal Load): 50 N, 100 N, 200 N, 0.5 kN, 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN
Tensile / Compression: Compression
Type/Technology: Strain Gauge
Calibration: Calibrated
Output Signal: mV/V (passive strain gauge), Voltage (0...10V), Current (4-20mA), IO-Link
Degree of Protection: IP67
Mechanical Interfaces: Spherical load introduction
Height (Without Accessories): 13 mm, 15 mm, 28 mm
Diameter (Without Cable or Plug): 26 mm, 46 mm
