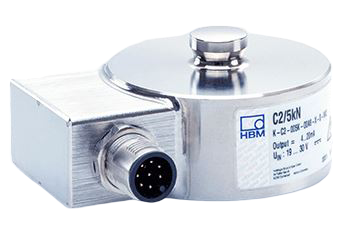

C2, Force Transducer

C2 Force Sensor: Reliable Compressive Force Measurement

The C2 force sensor, tried and tested over a long time, is a diaphragm sensor – a design that is very well-suited for fast measurements.This sensor, with integrated lateral force compensation,works safely even in the event of lateral forces or non-centric force application.
HBK has re-engineered the C2 series sensors for compressive force measurement to enable quick and optimized response to spare parts requirements and new designs. Different cable lengths, mounted plugs and TEDS are available, allowing for more efficient installation. In addition to the well-known passive versions of the force sensor, optional versions are now also available featuring integrated electronics, while external dimensions remain unchanged



C2

Reliable compressive force sensor delivering high accuracy, fast response, robust protection, and flexible integration for industrial measurement applications.

Highlights

  • High accuracy up to 0.1 class for precise compressive force measurement.
  • Wide capacity range from 0.5 kN to 200 kN.
  • Robust stainless steel design with IP67 protection and lateral force compensation.
  • Smart IO-Link version with integrated amplifier and sensor health monitoring.
  • Fast dynamic response with low deflection and high stiffness.

Tech Specs

  • Maximum capacity(nominal load): 2 kN, 5 kN, 100 kN, 500 N, 20 kN, 10 kN, 50 kN, 200 kN, 1 kN

  • Tensile/compression :Compression

  • Type/technology: Strain Gauge

  • Calibration: Calibrated

  • Output signal: mV/V (passive strain gauge), Voltage (0…10V), Current (4-20mA), IO-Link

  • Degree of protection: IP67

  • Mechanical interfaces: Spherical load introduction

  • Height (without accessories):30mm,60mm,48 mm

  • Diameter (without cable or plug): 50 mm,115 mm,90 mm,55 mm
