Displacement Transducers
OptoNCDT, Laser Sensors For Displacement, Distance & Position
optoNCDT laser sensors set milestones in industrial laser displacement measurement. Whether for displacement, distance or thickness measurements, Micro-Epsilon laser sensors are considered one of the best in their class. These sensors are used e.g. in measurement and monitoring tasks in factory automation, electronics production, robotics and vehicle construction.
Highest precision in a minimum of space. Ideal for demanding measurement tasks. Optimized for series and OEM applications.

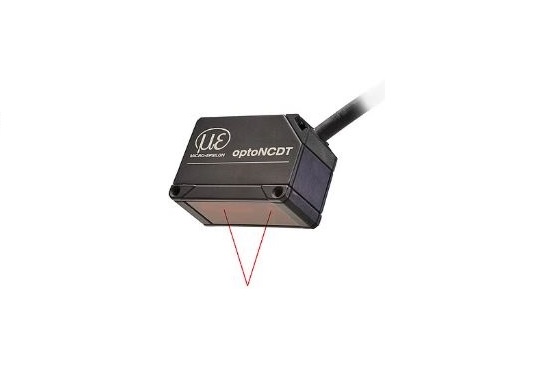

The optoNCDT 1220 is the entry-level model for precise measurements in industrial automation. This compact laser triangulation sensor measures displacement, distance and position with high precision. Based on an excellent price/performance ratio, this sensor is ideally suited to measurement tasks involving a large number of pieces. Therefore, the sensor can be used in all fields of automation technology, e.g., in machine building, 3D printers or robotics.
Tech Specs
- Measuring Range: 10 | 25 | 50 | 100 | 200 | 500 mm
- Repeatability: 1 µm
- Measuring Rate: 2 kHz

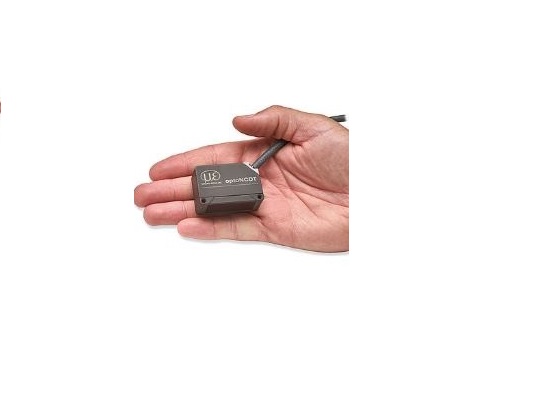

The optoNCDT 1320 is a new laser triangulation sensor with compact size for displacement, distance and position measurements. Due to its extremely compact size including integrated controller, the sensor can also be integrated into restricted installation space. Its low weight make the optoNCDT 1320 ideally suitable for applications where high accelerations occur, e.g., on the robot arm or in pick-and-place machines.
The optoNCDT 1320 offers high accuracy and adjustable measuring rates up to 4kHz. The Active Surface Compensation (ASC) provides stable distance signal control regardless of target color or brightness. Very small objects can be detected reliably due to the small measurement spot size.
Tech Specs
- Measuring Range: 10 | 25 | 50 | 100 | 200 | 500 mm
- Repeatability: 1 µm
- Measuring Rate: 4 kHz

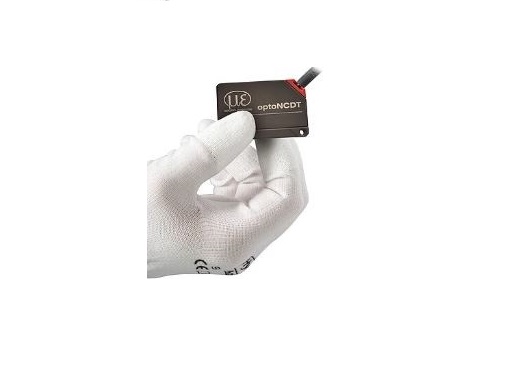

The optoNCDT 1420 offers a unique combination of speed, size, performance and application versatility for displacement, distance and position measurements. The compact triangulation sensor achieves a high measurement accuracy and measuring rates of up to 8kHz. The selectable connector type, i.e. cable or pigtail, together with compact size reduce the sensor installation effort to a minimum. Just like all triangulation sensors from Micro-Epsilon, the optoNCDT 1420 provides an intelligent surface regulation. The Active Surface Compensation (ASC) ensures stable measurement results regardless of changing surface colours or brightness. The high-performance optical system generates a small light spot which enables to even detect smallest components reliably.
Tech Specs
- Measuring Range: 10 | 25 | 50 | 100 | 200 | 500 mm
- Repeatability: 0.5 µm
- Measuring Rate: 8 kHz

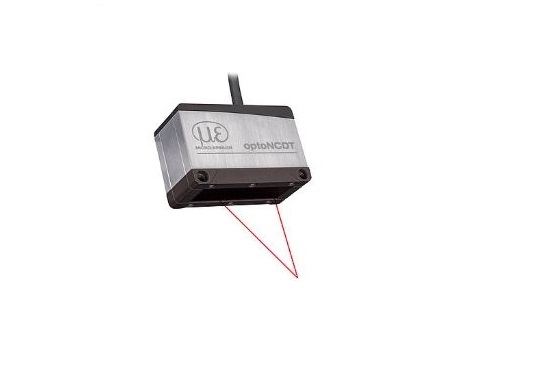

The optoNCDT 1900 offers a unique combination of speed, size, performance and application versatility for displacement, distance and position measurements. This compact triangulation sensor achieves a high measurement accuracy and measuring rates of up to 10 kHz. The high-performance optical system generates a small light spot which enables to even detect the finest of details and structures reliably.
Tech Specs
- Measuring Range: 2 | 6 | 10 | 25 | 50 | 100 | 200 | 500 mm
- Repeatability: 0.1 µm
- Measuring Rate: 10 kHz

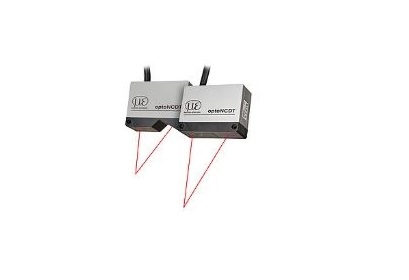

The optoNCDT 5500 laser sensor set new standards in high-precision laser distance measurement. With submicron accuracy and a measuring rate up to 150 kHz, the sensors provide reliable results on all surfaces. The compact sensor design can be integrated even in confined installation spaces - no additional controller required.
Maximum performance in the smallest of spaces - the optoNCDT 5500 series.
Tech Specs
- Measuring Range: 10 | 25 | 50 | 100 | 200 mm
- Repeatability: 0.04 µm
- Measuring Rate: 0.25 to 150 kHz
