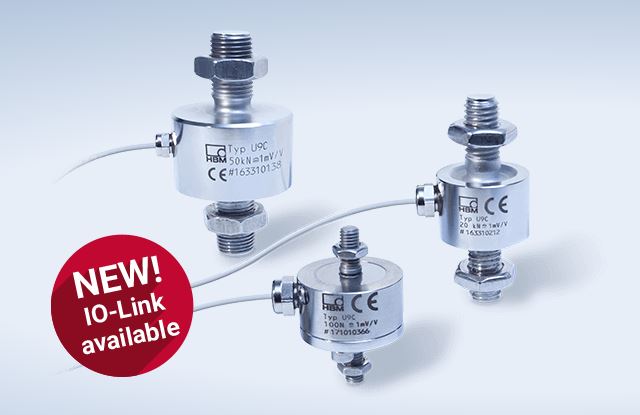

U9C Miniature Force Transducer: for Measurement of Tensile and Compressive Force

The compact and cost-effective U9C type series force sensors reliably measure tensile and compressive force where space is limited. Due to their high fundamental frequency, they are suitable for very fast measurements. Like all strain gauge-based transducers, the U9C sensors also allow for static forces to be measured reliably and with long-term stability. They ensure both robustness and high load-bearing capacity due to their welded design from stainless steel.

U9C

Miniature tensile and compressive force transducer for precise static and high-rigidity dynamic load measurement applications.

Highlights

Versatile tensile and compressive force transducer capable of measuring in both directions
Wide nominal force spectrum from 50 N up to 50 kN with HBK accuracy class 0.2
High rigidity design, making it particularly suited for fast dynamic measurement tasks
Non-rusting construction with IP67 protection class for challenging environments

Tech Specs

Maximum Capacity (Nominal Load): 50 N, 100 N, 200 N, 0.5 kN, 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN
Tensile / Compression: Both directions
Type/Technology: Strain Gauge
Calibration: Calibrated
Output Signal: mV/V (passive strain gauge), Voltage (0...10V), Current (4-20mA), IO-Link
Degree of Protection: IP67
Mechanical Interfaces: Both sides central external thread
Height (Without Accessories): 42 mm, 44.5 mm, 60 mm, 84 mm
Diameter (Without Cable or Plug): 18 mm, 26 mm, 46 mm

<h2>U9C</h2>
<p>Miniature tensile and compressive force transducer for precise static and high-rigidity dynamic load measurement applications.</p>
<h3>Highlights</h3>
<ul>
<li> Versatile tensile and compressive force transducer capable of measuring in both directions</li>
<li>Wide nominal force spectrum from 50 N up to 50 kN with HBK accuracy class 0.2</li>
<li>High rigidity design, making it particularly suited for fast dynamic measurement tasks</li>
<li>Non-rusting construction with IP67 protection class for challenging environments</li>
</ul>
<ul>
</ul>
<h3>Tech Specs</h3>
<ul>
<li><strong>Maximum Capacity (Nominal Load):</strong> 50 N, 100 N, 200 N, 0.5 kN, 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN</li>
<li><strong>Tensile / Compression:</strong> Both directions</li>
<li><strong>Type/Technology:</strong> Strain Gauge</li>
<li><strong>Calibration:</strong> Calibrated</li>
<li><strong>Output Signal:</strong> mV/V (passive strain gauge), Voltage (0...10V), Current (4-20mA), IO-Link</li>
<li><strong>Degree of Protection:</strong> IP67</li>
<li><strong>Mechanical Interfaces:</strong> Both sides central external thread</li>
<li><strong>Height (Without Accessories):</strong> 42 mm, 44.5 mm, 60 mm, 84 mm</li>
<li><strong>Diameter (Without Cable or Plug):</strong> 18 mm, 26 mm, 46 mm</li>
</ul>
