U10M, Force Transducer

U10M Tensile-Compressive Force Transducer: Capacities from 1.25 kN to 2.5 MN

The rotationally symmetric, low-profile U10 force is oustanding precise and made from rustfree materials. U10M load cells are suitable for acquiring fast, dynamic force trends and static forces. HBK offers a wide range of options (Double bridges, TEDS, mechanical adaptations, integrated amplifiers,...) so that a U10 can be adapted to its measurment task.

U10M

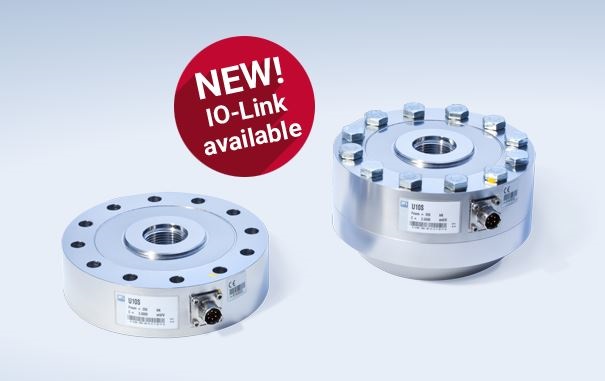

Precise and rugged tensile and compressive force transducer for highly accurate static and dynamic industrial measurement tasks.

Highlights

Precise and rugged tensile/compressive force transducer designed for both directions
High lateral force and bending moment stability, with electrical compensation for bending moment effects
High natural frequency, making it ideal for measuring incredibly fast processes
Flexible adaptation to diverse tasks via numerous configurations (TEDS chip, double bridge, and various electrical connections)
Durable stainless steel construction, with IP68 degree of protection available on request

Tech Specs

Maximum Capacity (Nominal Load): 1.25 kN, 2.5 kN, 5 kN, 12.5 kN, 25 kN, 50 kN, 125 kN, 250 kN, 500 kN, 1.25 MN
Tensile / Compression: Both directions
Type/Technology: Strain Gauge
Calibration: Calibrated
Output Signal: mV/V (passive strain gauge), IO-Link
Degree of Protection: IP67 (IP68 optional)
Mechanical Interfaces: Both sides central internal thread, One side central internal thread, other side flange
Height (Without Accessories): 34.9 mm, 44.5 mm, 63.5 mm, 88.9 mm, 127 mm
Diameter (Without Cable or Plug): 104.8 mm, 153.9 mm, 203.2 mm, 279 mm, 390 mm

<h2>U10M</h2>
<p>Precise and rugged tensile and compressive force transducer for highly accurate static and dynamic industrial measurement tasks.</p>
<h3>Highlights</h3>
<ul>
<li> Precise and rugged tensile/compressive force transducer designed for both directions</li>
<li>High lateral force and bending moment stability, with electrical compensation for bending moment effects</li>
<li>High natural frequency, making it ideal for measuring incredibly fast processes</li>
<li>Flexible adaptation to diverse tasks via numerous configurations (TEDS chip, double bridge, and various electrical connections)</li>
<li>Durable stainless steel construction, with IP68 degree of protection available on request</li>
</ul>
<ul>
</ul>
<h3>Tech Specs</h3>
<ul>
<li><strong>Maximum Capacity (Nominal Load):</strong> 1.25 kN, 2.5 kN, 5 kN, 12.5 kN, 25 kN, 50 kN, 125 kN, 250 kN, 500 kN, 1.25 MN</li>
<li><strong>Tensile / Compression:</strong> Both directions</li>
<li><strong>Type/Technology:</strong> Strain Gauge</li>
<li><strong>Calibration:</strong> Calibrated</li>
<li><strong>Output Signal:</strong> mV/V (passive strain gauge), IO-Link</li>
<li><strong>Degree of Protection:</strong> IP67 (IP68 optional)</li>
<li><strong>Mechanical Interfaces:</strong> Both sides central internal thread, One side central internal thread, other side flange</li>
<li><strong>Height (Without Accessories):</strong> 34.9 mm, 44.5 mm, 63.5 mm, 88.9 mm, 127 mm</li>
<li><strong>Diameter (Without Cable or Plug):</strong> 104.8 mm, 153.9 mm, 203.2 mm, 279 mm, 390 mm</li>
</ul>
