Data Acquisition System

SIRIUS® Modular, Modular Data Acquisition System

SIRIUS® modular is the world's most versatile and powerful data acquisition system. SIRIUS® provides high-end signal conditioning amplifiers for almost any signal and sensor. SIRIUS data acquisition systems are truly the latest in DAQ technology and offer high dynamic range (160 dB), galvanic isolation, etc. They are available in USB or EtherCAT® configurations.

All SIRIUS® instruments are bundled with award-winning data acquisition software and come with an industry-leading 7-year warranty.

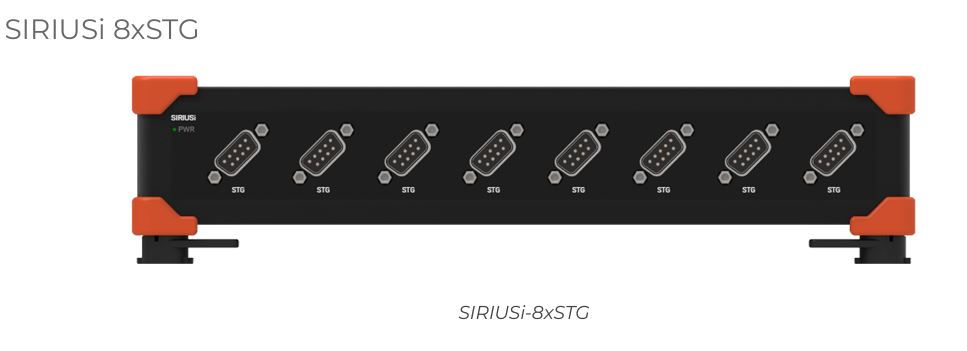

STG Series

Universal strain gauge module for bridge sensors and high-input applications.

Highlights

Supports all strain gauge types
Programmable shunt calibration
24-bit dual core ADC
70 kHz bandwidth
200 kS/sec per channel

Tech Specs

Voltage Range: ±50 V to ±100 mV
Bridge Support: Full, Half, Quarter
Supported Measurements: Strain Gauge Bridge, Voltage
Isolation: 1000 V
Power Consumption: 2 W/ch

<h2>STG Series</h2>
<p>Universal strain gauge module for bridge sensors and high-input applications.</p>
<h3>Highlights</h3>
<ul>
<li> Supports all strain gauge types </li>
<li> Programmable shunt calibration</li>
<li> 24-bit dual core ADC </li>
<li> 70 kHz bandwidth</li>
<li>200 kS/sec per channel</li>
</ul>
<h3>Tech Specs</h3>
<ul>
<li> <strong>Voltage Range:</strong> ±50 V to ±100 mV </li>
<li> <strong>Bridge Support:</strong> Full, Half, Quarter </li>
<li> <strong>Supported Measurements:</strong> Strain Gauge Bridge, Voltage</li>
<li> <strong>Isolation:</strong> 1000 V </li>
<li> <strong>Power Consumption:</strong> 2 W/ch</li>
</ul>

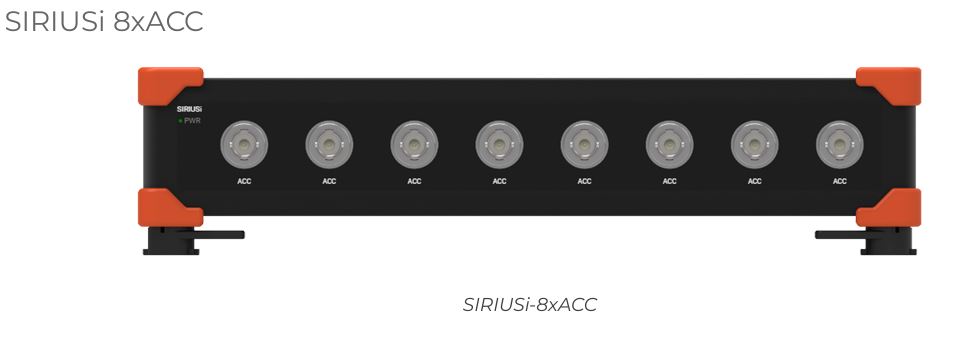

ACC Series

High-accuracy dynamic measurement module with IEPE support and wide bandwidth.

Highlights

24-bit dual core ADC
70 kHz bandwidth
IEPE sensor support
Sensor error detection
200 kS/sec per channel
Isolated & differential inputs

Tech Specs

Voltage Range: ±10 V, ±500 mV
Input Coupling: DC, AC (0.1 Hz / 1 Hz)
Supported Measurements: Voltage, IEPE
Isolation: 1000 V
Power Consumption: 1 W/ch

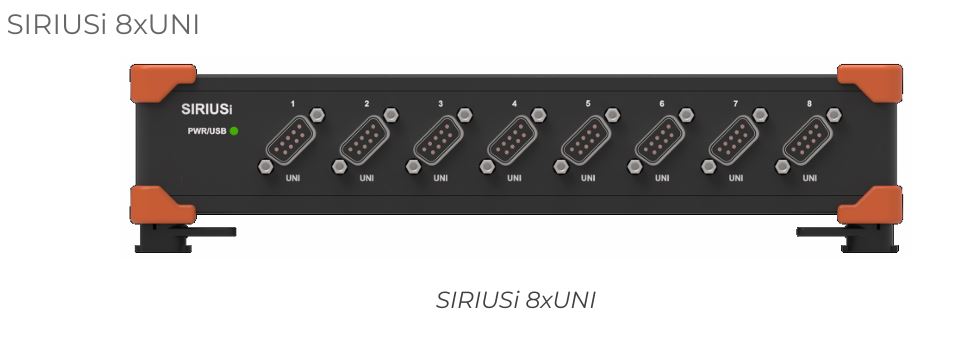

UNI Series

Flexible universal measurement module supporting multiple sensor and signal types.

Highlights

Universal sensor compatibility
Wide voltage input range
IEPE support
Flexible AC/DC coupling
24-bit dual core ADC
70 kHz bandwidth

Tech Specs

Voltage Range: ±100 V to ±10 mV
Input Coupling: DC, AC selectable
Supported Measurements: Resistance, PTx, Thermocouple, Current, Potentiometer, LVDT, Charge, TEDS, IEPE
Isolation: 1000 V
Power Consumption: 2 W/ch

<h2>UNI Series</h2>
<p>Flexible universal measurement module supporting multiple sensor and signal types.</p>
<h3>Highlights</h3>
<ul>
<li> Universal sensor compatibility </li>
<li> Wide voltage input range </li>
<li> IEPE support </li>
<li> Flexible AC/DC coupling </li>
<li> 24-bit dual core ADC </li>
<li> 70 kHz bandwidth </li>
</ul>
<h3>Tech Specs</h3>
<ul>
<li> <strong>Voltage Range:</strong> ±100 V to ±10 mV </li>
<li> <strong>Input Coupling:</strong> DC, AC selectable </li>
<li> <strong>Supported Measurements:</strong> Resistance, PTx, Thermocouple, Current, Potentiometer, LVDT, Charge, TEDS, IEPE </li>
<li> <strong>Isolation:</strong> 1000 V </li>
<li> <strong>Power Consumption:</strong> 2 W/ch</li>
</ul>
