KRYPTON庐, Rugged EtherCAT Data Acquisition System

Product Image
Data Acquisition System

KRYPTON庐, Rugged EtherCAT Data Acquisition System

Rugged and distributed EtherCAT data acquisition system for field measurement in extreme and harsh environments. KRYPTON DAQ systems offer IP67 degree of protection and can operate in the extreme temperature range from -40 to +85°C and offer high 100G shock protection.

KRYPTONi 8xLV

High-isolation voltage measurement module for precise multi-channel industrial signal acquisition.

Highlights

  • 8 isolated voltage inputs
  • 24-bit oversampled SAR ADC
  • Simultaneous sampling up to 250 kS/s
  • High isolation architecture
  • Low noise and high dynamic range

Tech Specs

  • Input Type: Isolated voltage
  • Voltage Ranges: ±50 V, ±100 V
  • Sampling Rates: 100 S/s to 250 kS/s
  • Resolution: 24-bit oversampled SAR ADC
  • Bandwidth: 0.49×fs
  • Input Coupling: DC
  • Input Impedance: 1 MΩ
  • Supported Measurements: Voltage
  • Noise Floor: 0.7 mVRMS
  • Isolation: 1000 Vpeak channel-to-ground & channel-to-channel
  • Connectors: BNC, LEMO 2-pin
  • Power Supply: 9–48 VDC
  • Power Consumption: 6.8 W

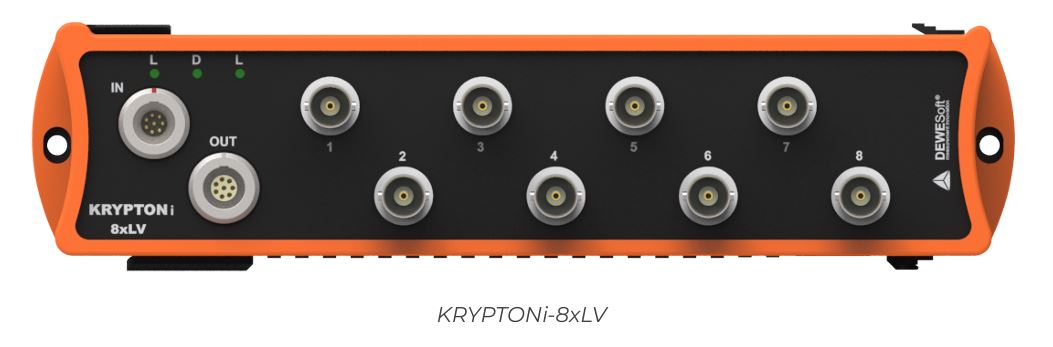

<h2>KRYPTONi 8xLV</h2> <p>High-isolation voltage measurement module for precise multi-channel industrial signal acquisition.</p> <h3>Highlights</h3> <ul> <li> 8 isolated voltage inputs </li> <li> 24-bit oversampled SAR ADC </li> <li> Simultaneous sampling up to 250 kS/s </li> <li> High isolation architecture </li> <li> Low noise and high dynamic range </li> </ul> <h3>Tech Specs</h3> <ul> <li> <strong>Input Type:</strong> Isolated voltage </li> <li> <strong>Voltage Ranges:</strong> &plusmn;50 V, &plusmn;100 V </li> <li> <strong>Sampling Rates:</strong> 100 S/s to 250 kS/s </li> <li> <strong>Resolution:</strong> 24-bit oversampled SAR ADC </li> <li> <strong>Bandwidth:</strong> 0.49&times;fs </li> <li> <strong>Input Coupling:</strong> DC </li> <li> <strong>Input Impedance:</strong> 1 M&Omega; </li> <li> <strong>Supported Measurements:</strong> Voltage </li> <li> <strong>Noise Floor:</strong> 0.7 mVRMS </li> <li> <strong>Isolation:</strong> 1000 Vpeak channel-to-ground &amp; channel-to-channel </li> <li> <strong>Connectors:</strong> BNC, LEMO 2-pin </li> <li> <strong>Power Supply:</strong> 9&ndash;48 VDC </li> <li> <strong>Power Consumption:</strong> 6.8 W</li> </ul>

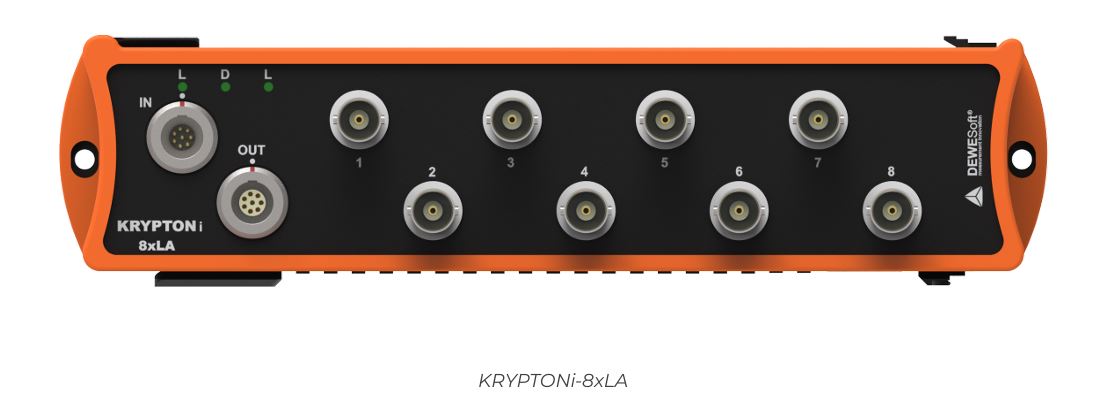

<h2>KRYPTONi 8xLA</h2> <p>High-isolation current measurement module for precise multi-channel current acquisition.</p> <h3>Highlights</h3> <ul> <li> 8 isolated current inputs </li> <li> 24-bit oversampled SAR ADC </li> <li> Simultaneous sampling up to 20 kS/s </li> <li> High isolation architecture </li> <li> Low noise and high channel separation </li> </ul> <h3>Tech Specs</h3> <ul> <li> <strong>Input Type:</strong> Isolated current </li> <li> <strong>Current Range:</strong> &plusmn;20 mA </li> <li> <strong>Sampling Rates:</strong> 100 S/s to 20 kS/s </li> <li> <strong>Resolution:</strong> 24-bit oversampled SAR ADC </li> <li> <strong>Bandwidth:</strong> 0.49&times;fs </li> <li> <strong>Input Coupling:</strong> DC </li> <li> <strong>Input Impedance:</strong> 50 &Omega; </li> <li> <strong>Supported Measurements:</strong> Current </li> <li> <strong>Noise Floor:</strong> 0.3 &micro;ARMS </li> <li> <strong>Isolation:</strong> 1000 Vpeak channel-to-ground &amp; channel-to-channel </li> <li> <strong>Connector:</strong> BNC </li> <li> <strong>Power Supply:</strong> 9&ndash;48 VDC </li> <li> <strong>Power Consumption:</strong> 6.8 W</li> </ul>

KRYPTONi 8xLA

High-isolation current measurement module for precise multi-channel current acquisition.

Highlights

  • 8 isolated current inputs
  • 24-bit oversampled SAR ADC
  • Simultaneous sampling up to 20 kS/s
  • High isolation architecture
  • Low noise and high channel separation

Tech Specs

  • Input Type: Isolated current
  • Current Range: ±20 mA
  • Sampling Rates: 100 S/s to 20 kS/s
  • Resolution: 24-bit oversampled SAR ADC
  • Bandwidth: 0.49×fs
  • Input Coupling: DC
  • Input Impedance: 50 Ω
  • Supported Measurements: Current
  • Noise Floor: 0.3 µARMS
  • Isolation: 1000 Vpeak channel-to-ground & channel-to-channel
  • Connector: BNC
  • Power Supply: 9–48 VDC
  • Power Consumption: 6.8 W

KRYPTON 6xSTG

Universal strain gauge and voltage measurement module for precise multi-channel data acquisition.

Highlights

  • 6 analog input channels
  • 24-bit oversampled SAR ADC
  • Simultaneous sampling up to 20 kS/s
  • Full, half, and quarter bridge strain gauge support
  • Free programmable excitation voltage via 16-bit DAC

Tech Specs

  • Input Type: Voltage, full / half / quarter strain
  • Number of Channels: 6
  • Sampling Rates: 100 S/s to 20 kS/s (simultaneous, software-selectable)
  • Resolution: 24-bit oversampled SAR ADC
  • Voltage Ranges: ±10 V, ±1 V, ±100 mV, ±10 mV
  • Bandwidth (-3 dB): 0.49 fs
  • Input Coupling: DC
  • Input Impedance: 10 MΩ
  • Excitation Voltage: 0, 1, 2.5, 5, 10, and 15 VDC predefined (free programmable)
  • Bridge Connection Types: Full bridge strain, 1/2 bridge strain, 1/4 bridge strain (3-wire)
  • Internal Bridge Completion: 1/2 bridge and 1/4 bridge 120 Ω and 350 Ω
  • Overvoltage Protection: In+ to In-: 50 V continuous, 200 V peak (10 ms)

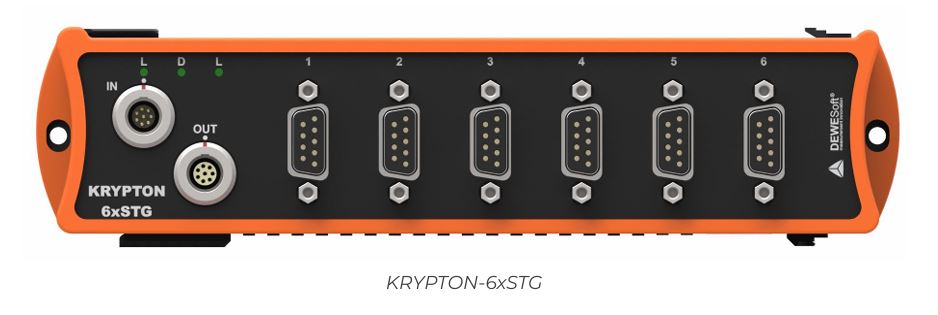

<h2>KRYPTON 6xSTG</h2> <p>Universal strain gauge and voltage measurement module for precise multi-channel data acquisition.</p> <h3>Highlights</h3> <ul> <li> 6 analog input channels</li> <li>24-bit oversampled SAR ADC</li> <li>Simultaneous sampling up to 20 kS/s</li> <li>Full, half, and quarter bridge strain gauge support</li> <li>Free programmable excitation voltage via 16-bit DAC</li> </ul> <ul> </ul> <h3>Tech Specs</h3> <ul> <li><strong>Input Type:</strong> Voltage, full / half / quarter strain</li> <li><strong>Number of Channels:</strong> 6</li> <li><strong>Sampling Rates:</strong> 100 S/s to 20 kS/s (simultaneous, software-selectable)</li> <li><strong>Resolution:</strong> 24-bit oversampled SAR ADC</li> <li><strong>Voltage Ranges:</strong> &plusmn;10 V, &plusmn;1 V, &plusmn;100 mV, &plusmn;10 mV</li> <li><strong>Bandwidth (-3 dB):</strong> 0.49 fs</li> <li><strong>Input Coupling:</strong> DC</li> <li><strong>Input Impedance:</strong> 10 M&Omega;</li> <li><strong>Excitation Voltage:</strong> 0, 1, 2.5, 5, 10, and 15 VDC predefined (free programmable)</li> <li><strong>Bridge Connection Types:</strong> Full bridge strain, 1/2 bridge strain, 1/4 bridge strain (3-wire)</li> <li><strong>Internal Bridge Completion:</strong> 1/2 bridge and 1/4 bridge 120 &Omega; and 350 &Omega;</li> <li><strong>Overvoltage Protection:</strong> In+ to In-: 50 V continuous, 200 V peak (10 ms)</li> </ul>

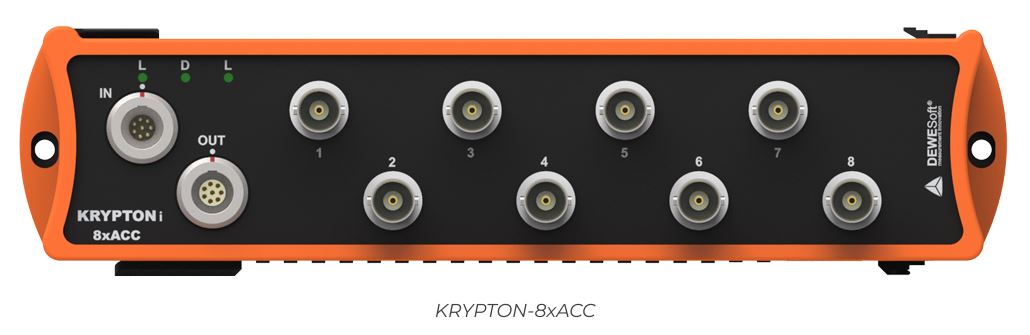

<h2>KRYPTON 8xACC</h2> <p>Isolated voltage and IEPE measurement module for precise multi-channel vibration and acoustic data acquisition.</p> <h3>Highlights</h3> <ul> <li> 8 isolated analog input channels</li> <li>24-bit delta-sigma ADC with anti-aliasing filter</li> <li>Simultaneous sampling up to 20 kS/s per channel</li> <li>Dedicated IEPE input mode with constant current excitation</li> <li>TEDS support for automated sensor recognition</li> </ul> <ul> </ul> <h3>Tech Specs</h3> <ul> <li><strong>Input Type:</strong> Voltage, IEPE</li> <li><strong>Number of Channels:</strong> 8</li> <li><strong>Sampling Rates:</strong> Simultaneous 20 kS/s per channel (software-selectable)</li> <li><strong>Resolution:</strong> 24-bit delta-sigma with anti-aliasing filter</li> <li><strong>Voltage Ranges:</strong> &plusmn;10 V, &plusmn;5 V, &plusmn;1 V, &plusmn;200 mV</li> <li><strong>Bandwidth (-3 dB):</strong> 0.49 fs</li> <li><strong>Input Coupling:</strong> DC, AC 0.1 Hz, 1 Hz</li> <li><strong>Input Impedance:</strong> 1 M&Omega;</li> <li><strong>IEPE Excitation:</strong> 4 mA, 8 mA</li> <li><strong>Compliance Voltage:</strong> 25 V</li> <li><strong>Sensor Detection:</strong> Shortcut: &lt;4 V; Open: &gt;19 V</li> <li><strong>TEDS Support:</strong> IEPE mode only</li> <li><strong>Input Connector:</strong> BNC</li> <li><strong>Overvoltage Protection:</strong> In+ to In-: 50 V continuous, 200 V peak (10 msec)</li> <li><strong>Power Supply:</strong> 9 - 48 V DC</li> <li><strong>Power Consumption:</strong> 4.6 W</li> </ul>

KRYPTON 8xACC

Isolated voltage and IEPE measurement module for precise multi-channel vibration and acoustic data acquisition.

Highlights

  • 8 isolated analog input channels
  • 24-bit delta-sigma ADC with anti-aliasing filter
  • Simultaneous sampling up to 20 kS/s per channel
  • Dedicated IEPE input mode with constant current excitation
  • TEDS support for automated sensor recognition

Tech Specs

  • Input Type: Voltage, IEPE
  • Number of Channels: 8
  • Sampling Rates: Simultaneous 20 kS/s per channel (software-selectable)
  • Resolution: 24-bit delta-sigma with anti-aliasing filter
  • Voltage Ranges: ±10 V, ±5 V, ±1 V, ±200 mV
  • Bandwidth (-3 dB): 0.49 fs
  • Input Coupling: DC, AC 0.1 Hz, 1 Hz
  • Input Impedance: 1 MΩ
  • IEPE Excitation: 4 mA, 8 mA
  • Compliance Voltage: 25 V
  • Sensor Detection: Shortcut: <4 V; Open: >19 V
  • TEDS Support: IEPE mode only
  • Input Connector: BNC
  • Overvoltage Protection: In+ to In-: 50 V continuous, 200 V peak (10 msec)
  • Power Supply: 9 - 48 V DC
  • Power Consumption: 4.6 W

KRYPTONi 16xTH

Isolated universal thermocouple and voltage measurement module for precise, high-density temperature data acquisition.

Highlights

  • 16 isolated analog input channels
  • 24-bit delta-sigma ADC
  • Simultaneous sampling up to 100 S/s
  • Support for a wide range of thermocouple types (K, J, T, R, S, N, E, C, B)
  • High isolation architecture with IP67 environmental protection

Tech Specs

  • Input Type: Isolated universal thermocouple and voltage
  • Number of Channels: 16
  • Sampling Rates: Simultaneous 100, 80, 40, 20, 10 S/s (software selectable)
  • Resolution: 24-bit delta-sigma
  • Voltage Ranges: ±1 V, ±100 mV
  • Input Coupling: DC
  • Input Impedance: 100 MΩ
  • Thermocouple Types: K, J, T, R, S, N, E, C, B
  • Thermocouple Resolution: < 0.001 °C
  • Input Connector: Mini Thermocouple connector (copper)
  • Isolation Voltage: 1000 Vpeak channel/ground & channel/channel
  • IP Rating: IP67 (Depending on mating connector types, IP65 standard)
  • Power Supply: 9 - 48 V DC
  • Power Consumption: 4 W

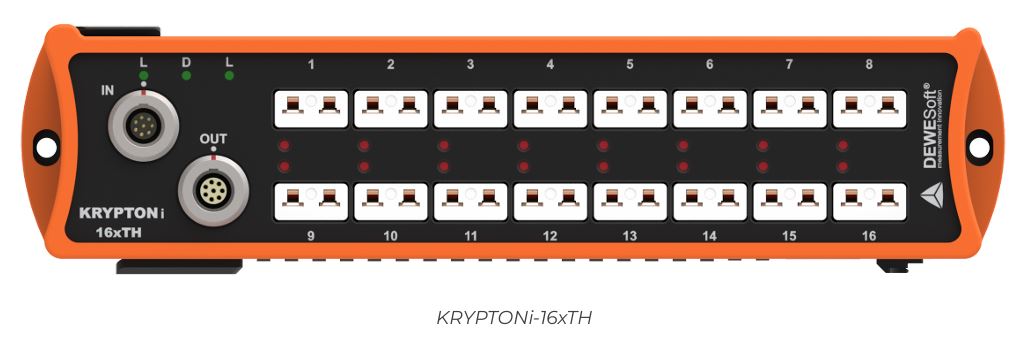

<h2>KRYPTONi 16xTH</h2> <p>Isolated universal thermocouple and voltage measurement module for precise, high-density temperature data acquisition.</p> <h3>Highlights</h3> <ul> <li> 16 isolated analog input channels</li> <li>24-bit delta-sigma ADC</li> <li>Simultaneous sampling up to 100 S/s</li> <li>Support for a wide range of thermocouple types (K, J, T, R, S, N, E, C, B)</li> <li>High isolation architecture with IP67 environmental protection</li> </ul> <ul> </ul> <h3>Tech Specs</h3> <ul> <li><strong>Input Type:</strong> Isolated universal thermocouple and voltage</li> <li><strong>Number of Channels:</strong> 16</li> <li><strong>Sampling Rates:</strong> Simultaneous 100, 80, 40, 20, 10 S/s (software selectable)</li> <li><strong>Resolution:</strong> 24-bit delta-sigma</li> <li><strong>Voltage Ranges:</strong> &plusmn;1 V, &plusmn;100 mV</li> <li><strong>Input Coupling:</strong> DC</li> <li><strong>Input Impedance:</strong> 100 M&Omega;</li> <li><strong>Thermocouple Types:</strong> K, J, T, R, S, N, E, C, B</li> <li><strong>Thermocouple Resolution:</strong> &lt; 0.001 &deg;C</li> <li><strong>Input Connector:</strong> Mini Thermocouple connector (copper)</li> <li><strong>Isolation Voltage:</strong> 1000 Vpeak channel/ground &amp; channel/channel</li> <li><strong>IP Rating:</strong> IP67 (Depending on mating connector types, IP65 standard)</li> <li><strong>Power Supply:</strong> 9 - 48 V DC</li> <li><strong>Power Consumption:</strong> 4 W</li> </ul>
