IOLITE庐 X, New Generation Distributable Data Acquisition System

Product Image
Data Acquisition System

IOLITE庐 X, New Generation Distributable Data Acquisition System

IOLITE® X represents the new generation of data acquisition systems from Dewesoft, featuring sample rates of up to 500 kS/s with 24-bit resolution. Designed for easy connectivity, IOLITE® X devices offer a GLAN interface that supports PTP time synchronization and active Power Over Ethernet (PoE).

IOLITE® X is fully compliant with openDAQ SDK and is open for integration into any environment through the open-source SDK.

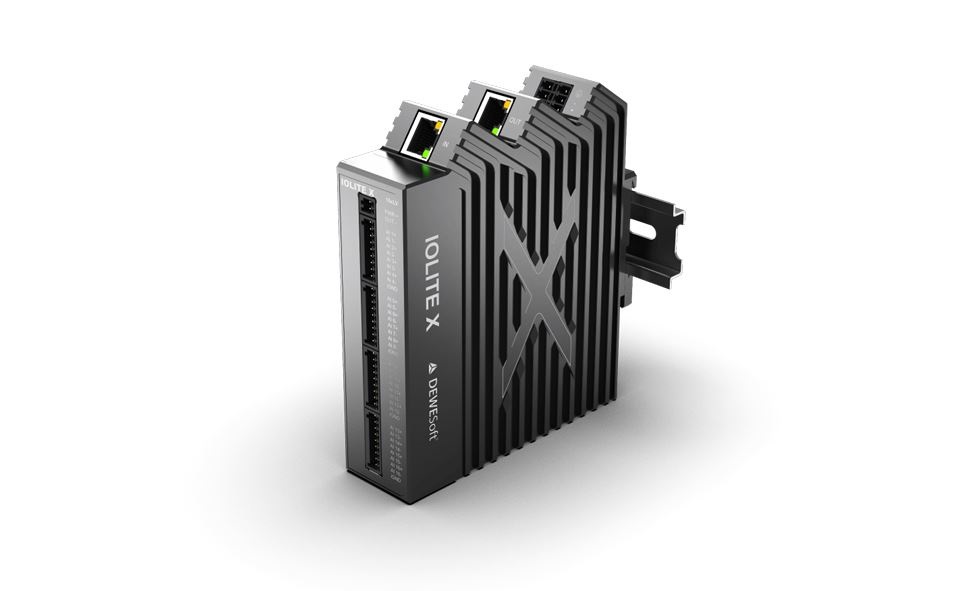

IOLITE X 16xLV

High-channel-count voltage measurement module for isolated industrial signal acquisition.

Highlights

  • 16-channel high-density input
  • High isolation architecture
  • Wide voltage input range
  • 24-bit resolution
  • 100 kS/s per channel

Tech Specs

  • Voltage Range: ±200 V, ±10 V
  • Input Coupling: DC
  • Supported Measurements: Voltage
  • Isolation: 250 V (Ch-GND)
  • Connector: Terminal block
  • Advanced Features: High isolation, high input range
<h2>IOLITE X 16xLV</h2> <p>High-channel-count voltage measurement module for isolated industrial signal acquisition.</p> <h3>Highlights</h3> <ul> <li> 16-channel high-density input </li> <li> High isolation architecture </li> <li> Wide voltage input range </li> <li> 24-bit resolution </li> <li> 100 kS/s per channel </li> </ul> <h3>Tech Specs</h3> <ul> <li> <strong>Voltage Range:</strong> &plusmn;200 V, &plusmn;10 V </li> <li> <strong>Input Coupling:</strong> DC </li> <li> <strong>Supported Measurements:</strong> Voltage </li> <li> <strong>Isolation:</strong> 250 V (Ch-GND) </li> <li> <strong>Connector:</strong> Terminal block </li> <li> <strong>Advanced Features:</strong> High isolation, high input range</li> </ul>
<h2>IOLITE X 8xSTGS</h2> <p>High-precision strain gauge and bridge measurement module for dynamic sensor acquisition.</p> <h3>Highlights</h3> <ul> <li> 8 simultaneous channels </li> <li> 24-bit delta-sigma ADC </li> <li> Up to 50 kS/s per channel </li> <li> Full, Half &amp; Quarter bridge support </li> <li> Software-selectable excitation </li> <li> Integrated shunt calibration </li> <li> High dynamic range &amp; low noise </li> </ul> <h3>Tech Specs</h3> <ul> <li> <strong>Input Type:</strong> Full / Half / Quarter Bridge, Potentiometer </li> <li> <strong>Voltage Ranges:</strong> 1 V, 0.1 V, 0.02 V </li> <li> <strong>Input Coupling:</strong> DC </li> <li> <strong>Excitation:</strong> 1 V, 2 V, 5 V </li> <li> <strong>Bridge Support:</strong> 120 &Omega; &amp; 350 &Omega; </li> <li> <strong>Programmable Shunt:</strong> 100 k&Omega; </li> <li> <strong>Supported Measurements:</strong> Strain, Bridge Sensors, Potentiometer </li> <li> <strong>Sampling Rate:</strong> 50 kS/s per channel</li> </ul>

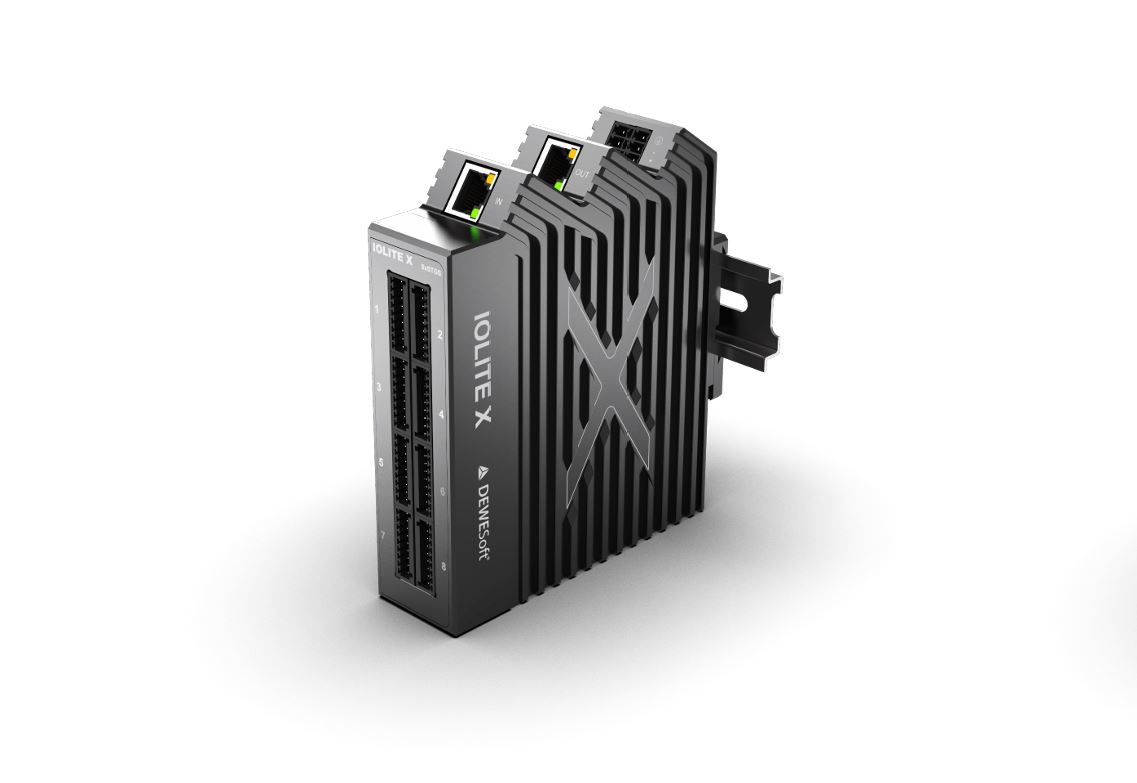

IOLITE X 8xSTGS

High-precision strain gauge and bridge measurement module for dynamic sensor acquisition.

Highlights

  • 8 simultaneous channels
  • 24-bit delta-sigma ADC
  • Up to 50 kS/s per channel
  • Full, Half & Quarter bridge support
  • Software-selectable excitation
  • Integrated shunt calibration
  • High dynamic range & low noise

Tech Specs

  • Input Type: Full / Half / Quarter Bridge, Potentiometer
  • Voltage Ranges: 1 V, 0.1 V, 0.02 V
  • Input Coupling: DC
  • Excitation: 1 V, 2 V, 5 V
  • Bridge Support: 120 Ω & 350 Ω
  • Programmable Shunt: 100 kΩ
  • Supported Measurements: Strain, Bridge Sensors, Potentiometer
  • Sampling Rate: 50 kS/s per channel

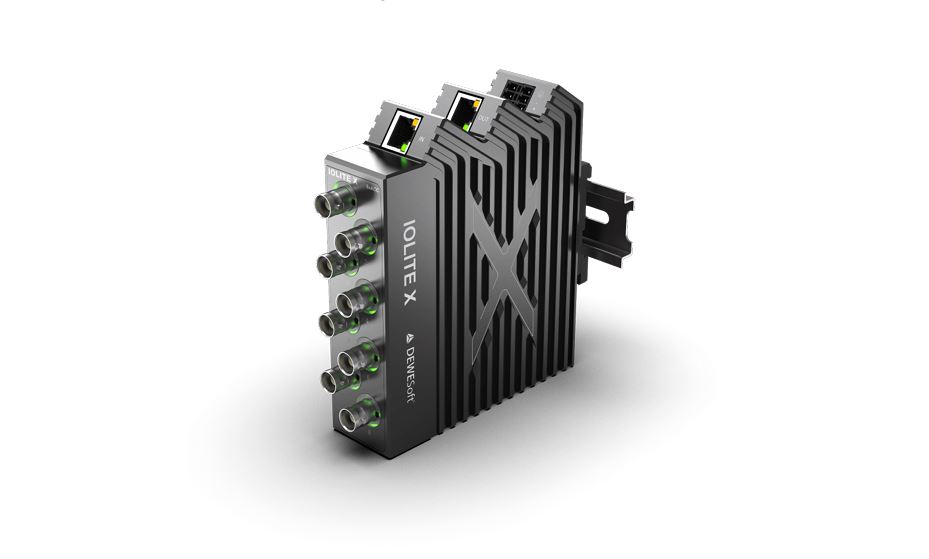

IOLITE X 8xACC

Dynamic signal acquisition module optimized for IEPE-based measurements.

Highlights

  • IEPE sensor support
  • TEDS compatibility
  • High channel density
  • 24-bit resolution
  • 200 kS/s per channel

Tech Specs

  • Voltage Range: ±10 V, ±5 V, ±1 V, ±200 mV
  • Input Coupling: DC, AC 1 Hz, AC 0.1 Hz
  • Sensor Excitation: 2 mA, 4 mA, 6 mA
  • Supported Measurements: IEPE, TEDS
  • Isolation: 250 V (Ch-GND)
  • Connector: BNC
  • Advanced Features: IEPE support, TEDS, high channel density
<h2>IOLITE X 8xACC</h2> <p>Dynamic signal acquisition module optimized for IEPE-based measurements.</p> <h3>Highlights</h3> <ul> <li> IEPE sensor support </li> <li> TEDS compatibility </li> <li> High channel density </li> <li> 24-bit resolution </li> <li> 200 kS/s per channel </li> </ul> <h3>Tech Specs</h3> <ul> <li> <strong>Voltage Range:</strong> &plusmn;10 V, &plusmn;5 V, &plusmn;1 V, &plusmn;200 mV </li> <li> <strong>Input Coupling:</strong> DC, AC 1 Hz, AC 0.1 Hz </li> <li> <strong>Sensor Excitation:</strong> 2 mA, 4 mA, 6 mA </li> <li> <strong>Supported Measurements:</strong> IEPE, TEDS </li> <li> <strong>Isolation:</strong> 250 V (Ch-GND) </li> <li> <strong>Connector:</strong> BNC </li> <li> <strong>Advanced Features:</strong> IEPE support, TEDS, high channel density</li> </ul>
