Data Acquisition System

GTDL H20

This product is a portable handheld strain gauge indicator designed to support up to four strain-gauge sensors, including load cells and displacement transducers, with compatibility for 1-gauge, 2-gauge, and 4-gauge configurations.

It is equipped with a high-resolution 3.2-inch TFT display, 4 GB internal storage for data logging, a rechargeable lithium-ion battery, and USB connectivity for charging and data communication. The compact and user-friendly design makes it suitable for both field measurements and industrial testing applications.

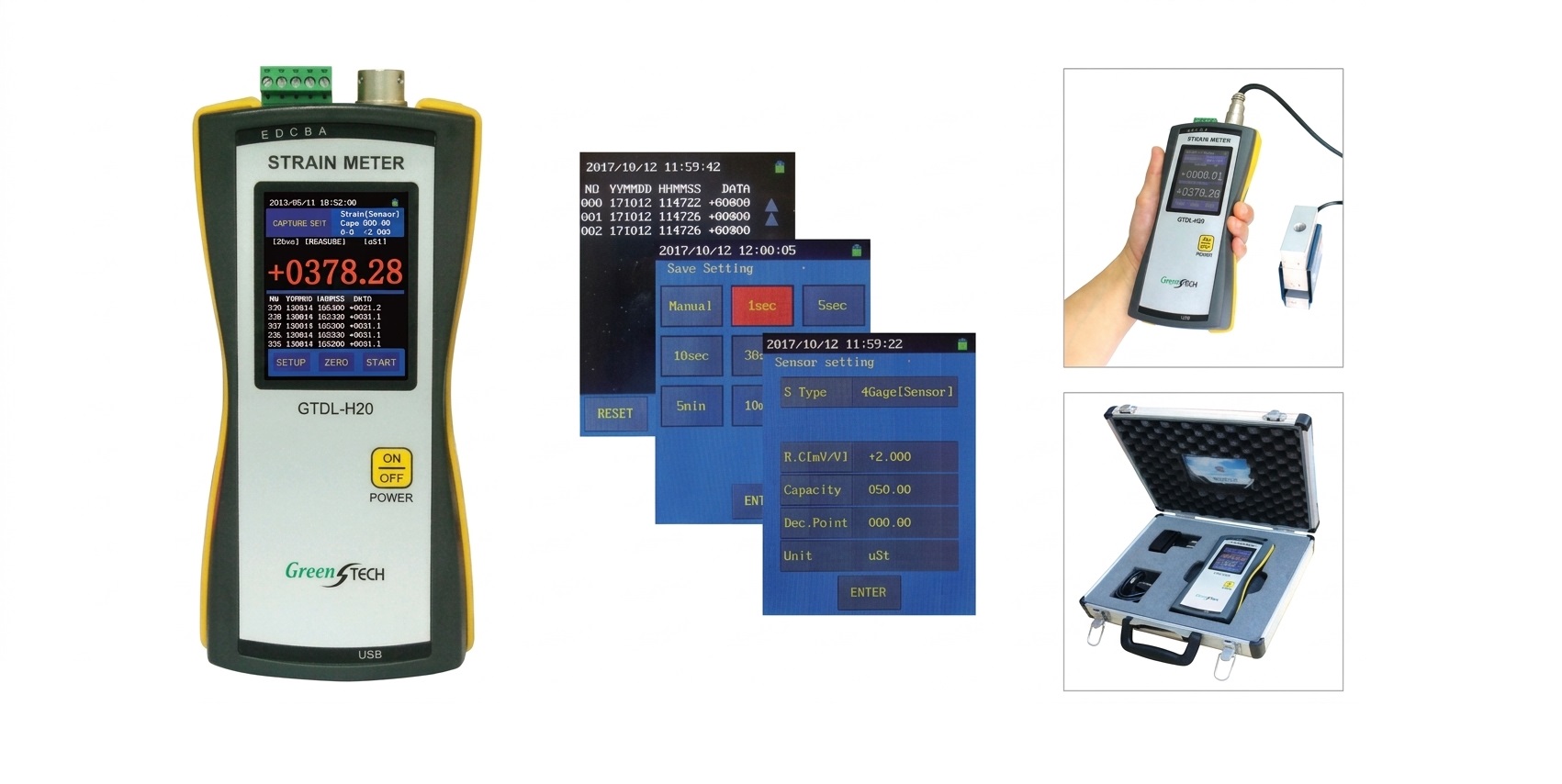

GTDL-H20

Portable handheld strain meter and data logger for precise on-site structural and sensor data acquisition.

Highlights

3.2-inch TFT touchable LCD display for real-time visualization
Multi-sensor support covering strain gages, bridge sensors, potentiometers, and RTDs
High-resolution 24-bit A/D conversion
Rechargeable internal Lithium-ion battery for field mobility
Built-in data memory with external expansion capabilities

Tech Specs

Display: 3.2 inch TFT Touchable LCD
Internal Battery: Lithium-ion 3.7V, 1800 mAh
Internal Data Memory: 4KByte (Option: 4GByte)
Input Sensor - Strain Gages: 1 Gauge & 2 Gauge: 120 Ω, 350 Ω
Input Sensor - Bridge Sensors: 4 Gauge Bridge Sensor: 0.5 mV/V~ 10 mV/V
Input Sensor - Misc: Potentiometer Sensor, Pt100 RTD
Connector for Sensor: 5p Screw connector & TAJIMI
Strain Input Range: ±30,000 (με)
A/D Conversion: 24 Bit
A/D Conversion Speed: 10 times/sec
Data Save: 400 Point Save
Data Download: USB
Program: Multiscan S/W & Multiload S/W
Demension: 98(W)*200(H)*35(D)mm

<h2>GTDL-H20</h2>
<p>Portable handheld strain meter and data logger for precise on-site structural and sensor data acquisition.</p>
<h3>Highlights</h3>
<ul>
<li> 3.2-inch TFT touchable LCD display for real-time visualization</li>
<li>Multi-sensor support covering strain gages, bridge sensors, potentiometers, and RTDs</li>
<li>High-resolution 24-bit A/D conversion</li>
<li>Rechargeable internal Lithium-ion battery for field mobility</li>
<li>Built-in data memory with external expansion capabilities</li>
</ul>
<ul>
</ul>
<h3>Tech Specs</h3>
<ul>
<li><strong>Display:</strong> 3.2 inch TFT Touchable LCD</li>
<li><strong>Internal Battery:</strong> Lithium-ion 3.7V, 1800 mAh</li>
<li><strong>Internal Data Memory:</strong> 4KByte (Option: 4GByte)</li>
<li><strong>Input Sensor - Strain Gages:</strong> 1 Gauge & 2 Gauge: 120 Ω, 350 Ω</li>
<li><strong>Input Sensor - Bridge Sensors:</strong> 4 Gauge Bridge Sensor: 0.5 mV/V~ 10 mV/V</li>
<li><strong>Input Sensor - Misc:</strong> Potentiometer Sensor, Pt100 RTD</li>
<li><strong>Connector for Sensor:</strong> 5p Screw connector & TAJIMI</li>
<li><strong>Strain Input Range:</strong> ±30,000 (με)</li>
<li><strong>A/D Conversion:</strong> 24 Bit</li>
<li><strong>A/D Conversion Speed:</strong> 10 times/sec</li>
<li><strong>Data Save:</strong> 400 Point Save</li>
<li><strong>Data Download:</strong> USB</li>
<li><strong>Program:</strong> Multiscan S/W & Multiload S/W</li>
<li><strong>Demension:</strong> 98(W)*200(H)*35(D)mm</li>
</ul>
