GTDL 350 & GTDL 360, PC Connected Data Logger

Product Image
Data Acquisition System

GTDL 350 & GTDL 360, PC Connected Data Logger

This product is a PC-connected data logger designed for data acquisition, storage, and real-time graph display through a computer interface.

By connecting a strain gauge, the system enables strain measurement and supports a wide range of sensors, including load cells, LVDTs, pressure sensors, torque sensors, accelerometers, potentiometers, RTDs, thermocouples, and voltage inputs.

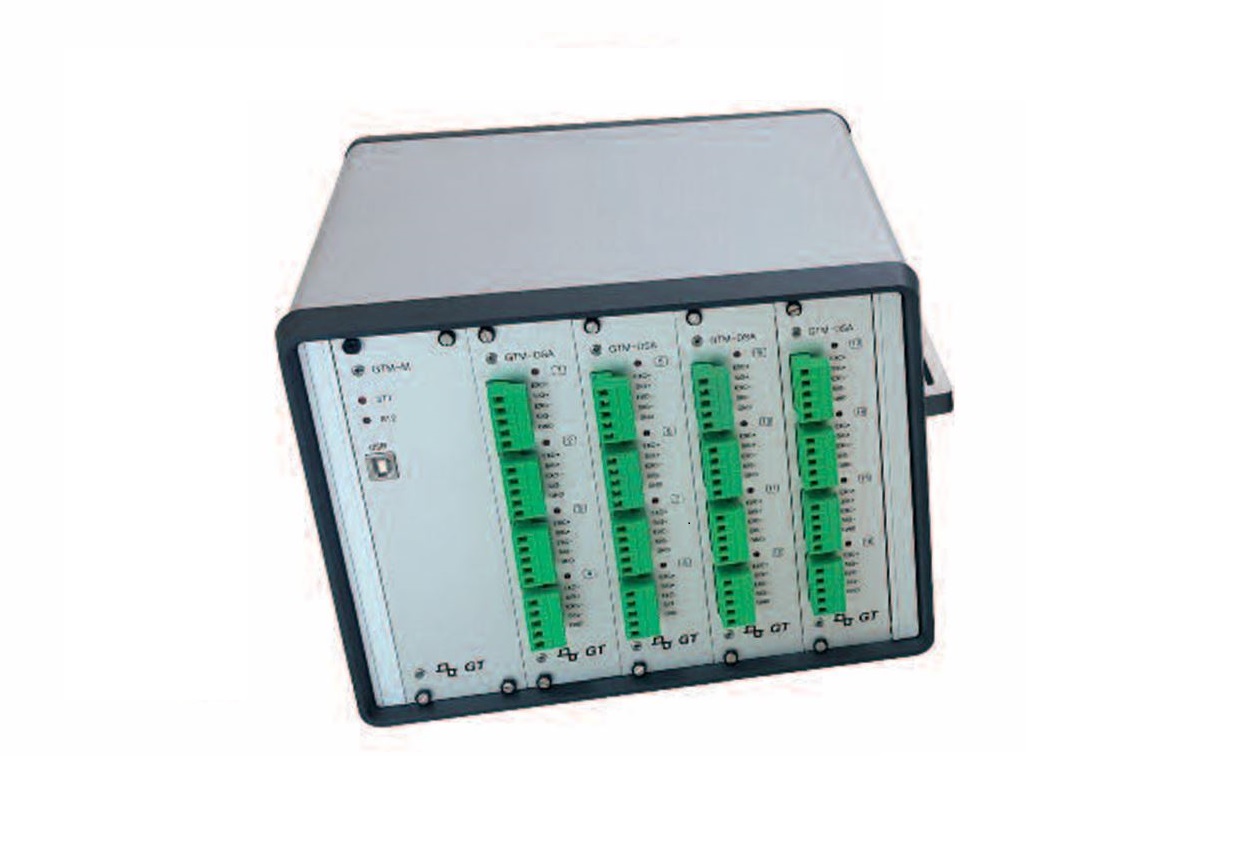

GTDL-350

Multi-channel static and dynamic data logger for versatile structural, strain, and sensor measurement applications.

Highlights

  • Configurable with 4, 8, 12, or 16 channels
  • Direct support for 1-gage, 2-gage, and 4-gage bridge sensors
  • Multi-sensor compatibility including strain, voltage, potentiometer, and temperature
  • Integrated USB interface for seamless PC communication
  • Dynamic measurement capabilities up to 1,000 Hz

Tech Specs

  • Number of Channel: 4, 8, 12, 16 channel
  • Measure Hz: 1,000 Hz
  • Connector for sensor: 5p Screw connector or TAJIMI
  • Input Sensor - Strain Gages: 1Gage & 2Gage: 120 Ω, 350 Ω
  • Input Sensor - Bridge Sensors: 4 Gage Bridge Sensor: 0.5 mV/V ~ 100 mV/V
  • Input Sensor - Temperature: Pt100 temperature sensor, thermocouple temperature sensor J, K, T, E, R, S
  • Input Sensor - Voltage & Misc: Voltage: 10V, Potentiometer Sensor
  • Strain Input Range: 10,000, 100,000, 1,000,000 X 10-6 strain
  • Low Pass Filter: 10 Hz, 100 Hz, 1 KHz, Pass Program Selectable
  • Interface: USB
  • Program: Multiscan S/W & Multiload S/W
  • Demension: 270(W)*190(H)*270(D)mm
  • Power: AC 220 V, 50~60 Hz
<h2>GTDL-350</h2> <p>Multi-channel static and dynamic data logger for versatile structural, strain, and sensor measurement applications.</p> <h3>Highlights</h3> <ul> <li> Configurable with 4, 8, 12, or 16 channels</li> <li>Direct support for 1-gage, 2-gage, and 4-gage bridge sensors</li> <li>Multi-sensor compatibility including strain, voltage, potentiometer, and temperature</li> <li>Integrated USB interface for seamless PC communication</li> <li>Dynamic measurement capabilities up to 1,000 Hz</li> </ul> <ul> </ul> <h3>Tech Specs</h3> <ul> <li><strong>Number of Channel:</strong> 4, 8, 12, 16 channel</li> <li><strong>Measure Hz:</strong> 1,000 Hz</li> <li><strong>Connector for sensor:</strong> 5p Screw connector or TAJIMI</li> <li><strong>Input Sensor - Strain Gages:</strong> 1Gage &amp; 2Gage: 120 &Omega;, 350 &Omega;</li> <li><strong>Input Sensor - Bridge Sensors:</strong> 4 Gage Bridge Sensor: 0.5 mV/V ~ 100 mV/V</li> <li><strong>Input Sensor - Temperature:</strong> Pt100 temperature sensor, thermocouple temperature sensor J, K, T, E, R, S</li> <li><strong>Input Sensor - Voltage &amp; Misc:</strong> Voltage: 10V, Potentiometer Sensor</li> <li><strong>Strain Input Range:</strong> 10,000, 100,000, 1,000,000 X 10-6 strain</li> <li><strong>Low Pass Filter:</strong> 10 Hz, 100 Hz, 1 KHz, Pass Program Selectable</li> <li><strong>Interface:</strong> USB</li> <li><strong>Program:</strong> Multiscan S/W &amp; Multiload S/W</li> <li><strong>Demension:</strong> 270(W)*190(H)*270(D)mm</li> <li><strong>Power:</strong> AC 220 V, 50~60 Hz</li> </ul>
<h2>GTDL-360</h2> <p>High-density multi-channel static and dynamic data logger for large-scale structural, strain, and sensor measurement applications.</p> <h3>Highlights</h3> <ul> <li> High-density configuration with 4, 8, 12, 16, 20, 24, 28, or 32 channels</li> <li>Direct support for 1-gage, 2-gage, and 4-gage bridge sensors</li> <li>Multi-sensor compatibility including strain, voltage, potentiometer, and temperature</li> <li>Integrated USB interface for seamless PC communication</li> <li>Dynamic measurement capabilities up to 1,000 Hz</li> </ul> <h3>Tech Specs</h3> <ul> <li><strong>Number of Channel:</strong> 4, 8, 12, 16, 20, 24, 28, 32 channel</li> <li><strong>Measure Hz:</strong> 1,000 Hz</li> <li><strong>Connector for sensor:</strong> 5p Screw connector or TAJIMI</li> <li><strong>Input Sensor - Strain Gages:</strong> 1Gage &amp; 2Gage: 120 &Omega;, 350 &Omega;</li> <li><strong>Input Sensor - Bridge Sensors:</strong> 4 Gage Bridge Sensor: 0.5 mV/V ~ 100 mV/V</li> <li><strong>Input Sensor - Temperature:</strong> Pt100 temperature sensor, thermocouple temperature sensor J, K, T, E, R, S</li> <li><strong>Input Sensor - Voltage &amp; Misc:</strong> Voltage: 10V, Potentiometer Sensor</li> <li><strong>Strain Input Range:</strong> 10,000, 100,000, 1,000,000 X 10-6 strain</li> <li><strong>Low Pass Filter:</strong> 10 Hz, 100 Hz, 1 KHz, Pass Program Selectable</li> <li><strong>Interface:</strong> USB</li> <li><strong>Program:</strong> Multiscan S/W &amp; Multiload S/W</li> <li><strong>Demension:</strong> 360(W)*190(H)*270(D)mm</li> <li><strong>Power:</strong> AC 220 V, 50~60 Hz</li> </ul>

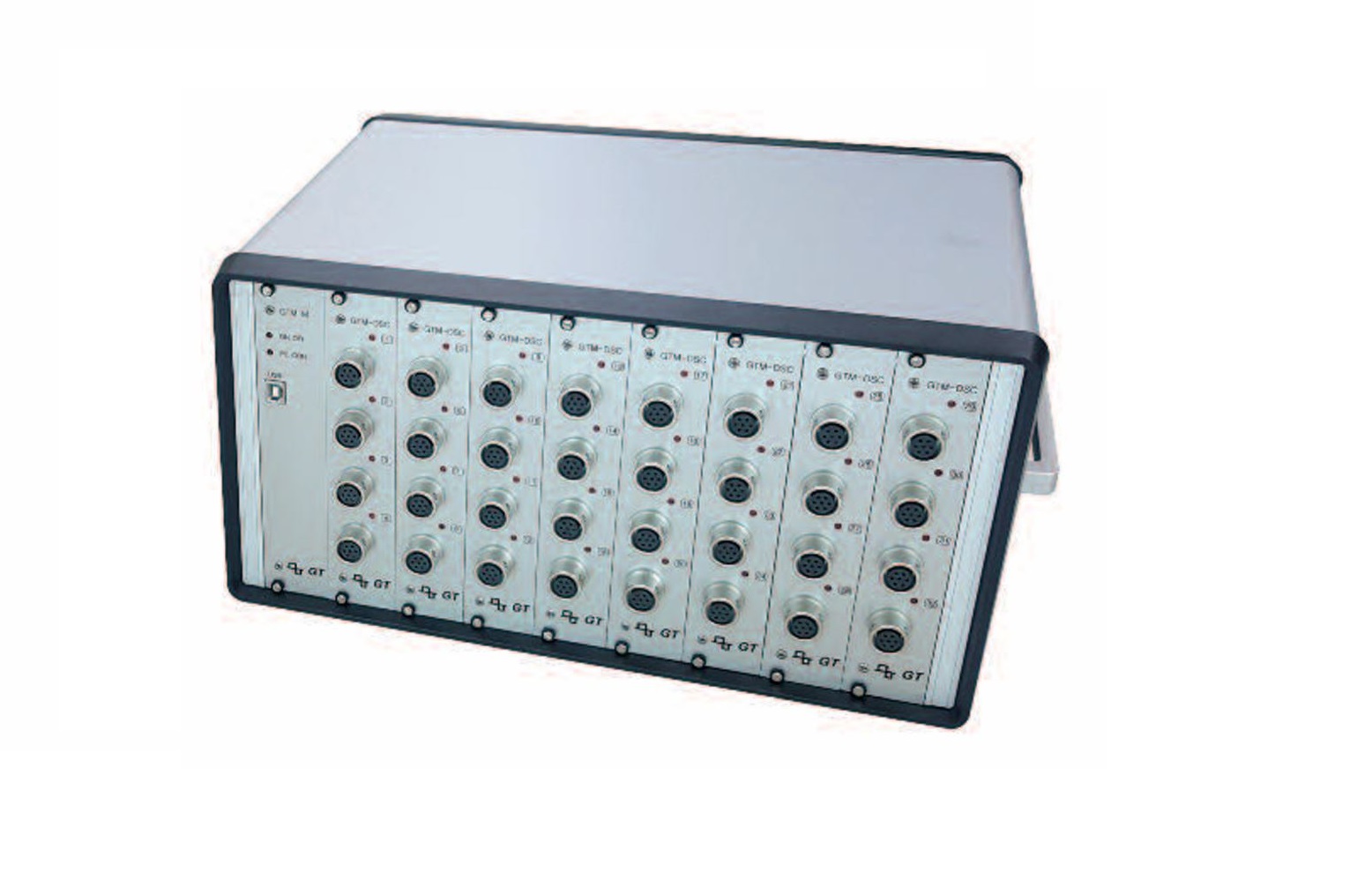

GTDL-360

High-density multi-channel static and dynamic data logger for large-scale structural, strain, and sensor measurement applications.

Highlights

  • High-density configuration with 4, 8, 12, 16, 20, 24, 28, or 32 channels
  • Direct support for 1-gage, 2-gage, and 4-gage bridge sensors
  • Multi-sensor compatibility including strain, voltage, potentiometer, and temperature
  • Integrated USB interface for seamless PC communication
  • Dynamic measurement capabilities up to 1,000 Hz

Tech Specs

  • Number of Channel: 4, 8, 12, 16, 20, 24, 28, 32 channel
  • Measure Hz: 1,000 Hz
  • Connector for sensor: 5p Screw connector or TAJIMI
  • Input Sensor - Strain Gages: 1Gage & 2Gage: 120 Ω, 350 Ω
  • Input Sensor - Bridge Sensors: 4 Gage Bridge Sensor: 0.5 mV/V ~ 100 mV/V
  • Input Sensor - Temperature: Pt100 temperature sensor, thermocouple temperature sensor J, K, T, E, R, S
  • Input Sensor - Voltage & Misc: Voltage: 10V, Potentiometer Sensor
  • Strain Input Range: 10,000, 100,000, 1,000,000 X 10-6 strain
  • Low Pass Filter: 10 Hz, 100 Hz, 1 KHz, Pass Program Selectable
  • Interface: USB
  • Program: Multiscan S/W & Multiload S/W
  • Demension: 360(W)*190(H)*270(D)mm
  • Power: AC 220 V, 50~60 Hz
