Torque Sensors

4520A, Shaft Torque Sensors

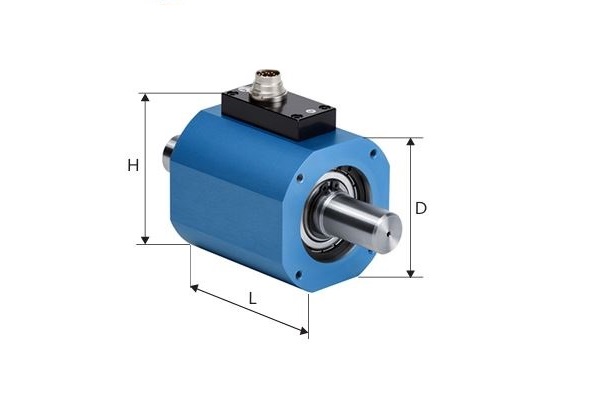

Torque sensors of Type 4520A operate on the strain gage principle and supply an analog output signal of ±0 ... 10 VDC which is transmitted without contact.

4520A

Torque sensors of Type 4520A operate on the strain gage principle and supply an analog output signal of ±0 ... 10 VDC which is transmitted without contact.

Highlights

Integral speed measurement with 60 pulses/revolution
Well suited for static and dynamic measurements with a cut-off frequency (–3 dB) 1,5 kHz
Analog output signal of ±0 ... 10 VDC

Tech Specs

Rated torque ( $M_{text{nom}}$ ): 1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1,000 $$text{N}cdottext{m}$$
Maximum torque: $$1.5 times text{rated torque}$$
Alternating torque: $$1 times text{rated torque}$$
Accuracy class: 0.5
Linearity error including hysteresis: $$<pm0.5% text{FSO}$$
Output signal (rated value) ( $M_{text{nom}}$ ): 10 $$text{VDC}$$
Speed measurement: 60 $$text{pulses/rev.}$$
Rated speed: $$le10,000 1/text{min}$$ (Depending on measuring range)
Case material: hard-anodized aluminum
Dimensions (L): 58 ... 85 mm
Dimensions (D): 58 ... 91 mm
Dimensions (H): 70 ... 103 mm
Operating temperature range: 10 ... 60 °C
