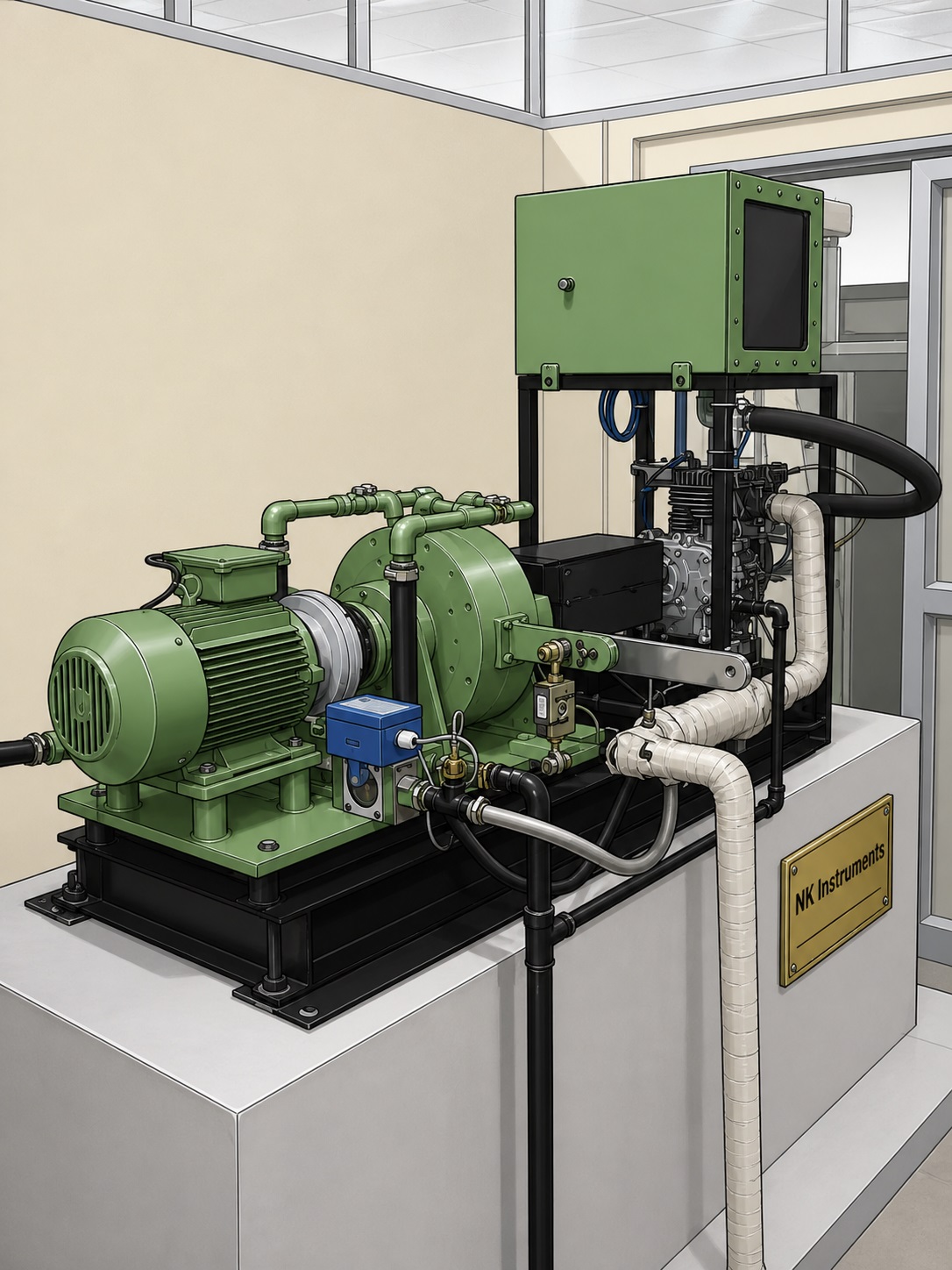

Computerized Multi Cylinder Engine Test Rig

It is an advanced testing system designed for performance evaluation, research, and analysis of multi-cylinder internal combustion engines. Equipped with computerized data acquisition and control systems, it enables precise measurement of engine parameters such as power, torque, fuel consumption, brake horse power, and pressures under various operating conditions.

Key Features

✔ Real-time computerized data acquisition and monitoring
✔ Accurate measurement of power, torque, speed, and fuel consumption
✔ Automated performance calculations and report generation
✔ Graphical display of engine operating parameters
✔ Compatible with petrol and diesel multi-cylinder engines
✔ Suitable for research, development, training, and industrial testing application

Technical Specifications

Engine Type: Multi-Cylinder Petrol / Diesel Engine
Number of Cylinders: 2 to 6 Cylinders (Customizable)
Rated Power: Up to 150 kW
Operating Speed Range: 500 – 6000 RPM
Loading System: Eddy Current Dynamometer / AC Dynamometer
Torque Measurement: Strain Gauge Based Load Cell
Speed Measurement: Digital RPM Sensor / Encoder
Fuel Consumption Measurement: Digital Fuel Flow Measurement System
Air Flow Measurement: Air Intake Measurement Unit (Optional)
Temperature Measurement: Multi-Channel Thermocouple System
Pressure Measurement: Cylinder, Intake & Exhaust Pressure Sensors
Data Acquisition System: Computer-Based Real-Time DAQ
Software Features: Data Logging, Performance Analysis, Trend Graphs & Report Generation
Measured Parameters: Torque, Power, RPM, Fuel Consumption, Temperatures, Pressures, Thermal Efficiency, BSFC
Display & Monitoring: Real-Time Graphical and Numerical Display
Power Supply: 230/415 VAC, 50 Hz
Communication Interface: USB / Ethernet Based Data Transfer
Safety Features: Emergency Stop, Overload Protection, Temperature Monitoring
Compliance: Suitable for Research, Development, Educational and Industrial Testing Applications
Customization: Available for customer-specific engine ratings and test requirements
